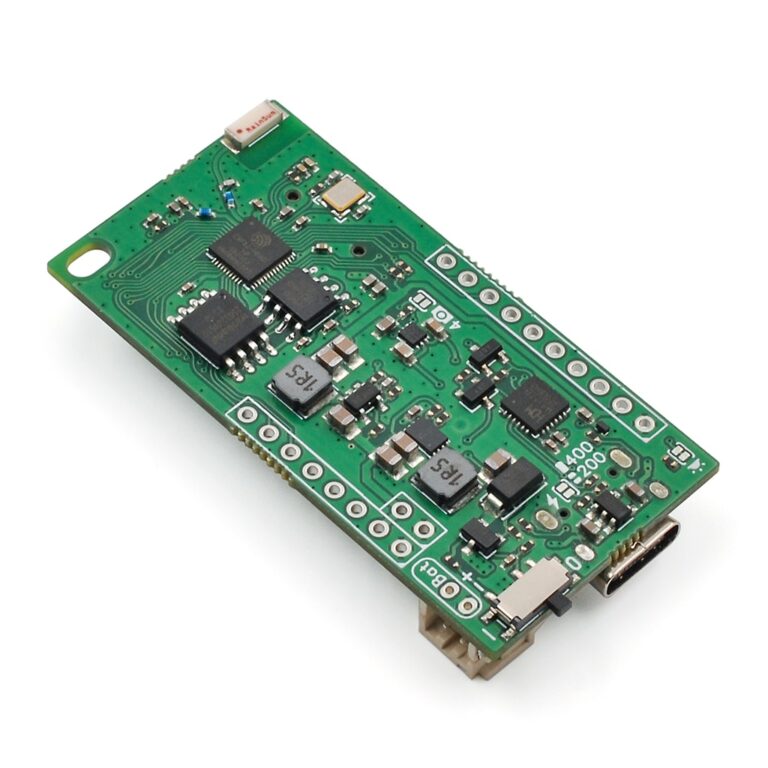

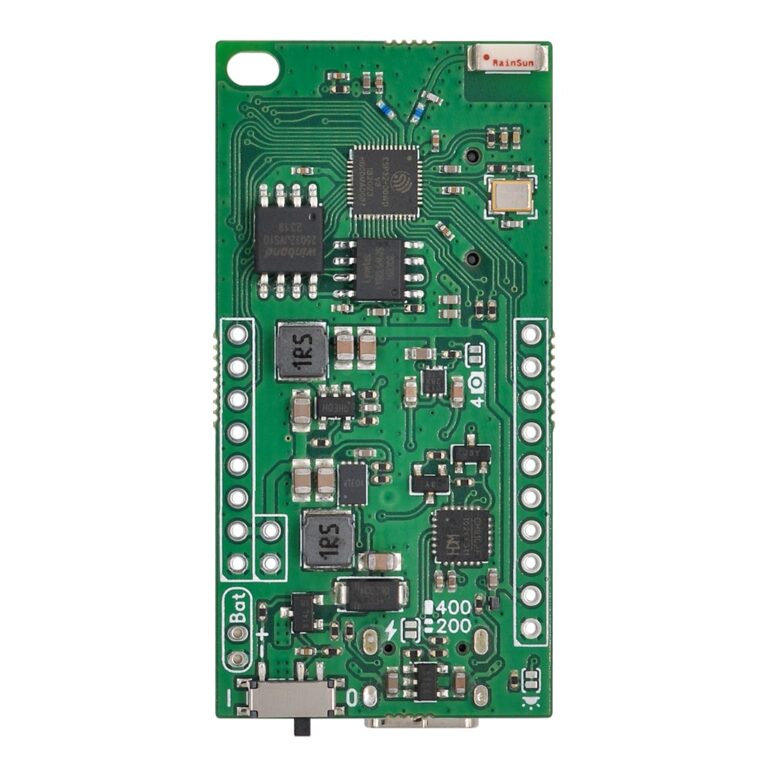

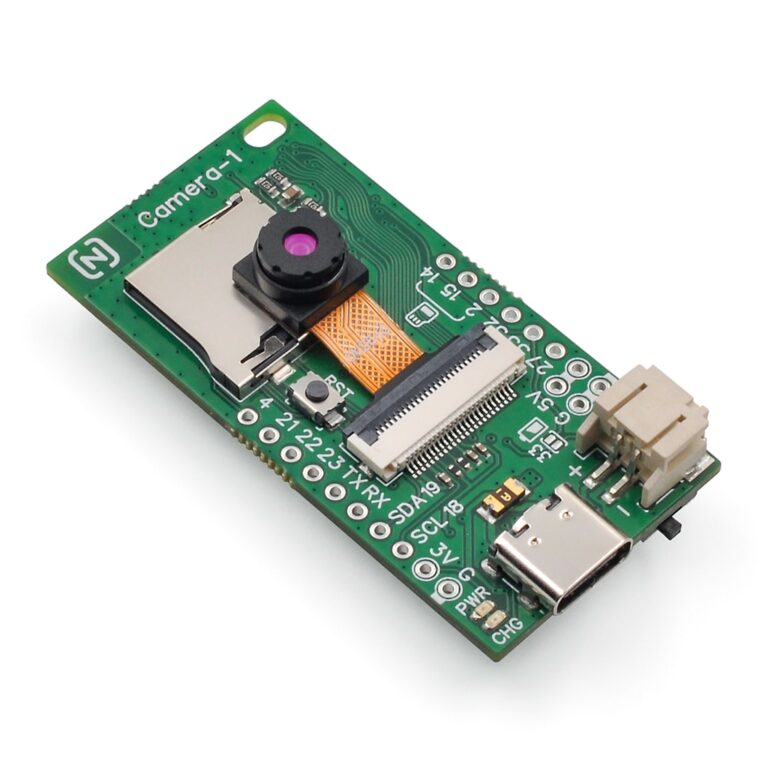

Camera-1

Overview

Camera-1 is a camera module based on the ESP32 chip, featuring 4MB of Flash and 8MB of PSRAM. It uses an OV2640 image sensor capable of capturing images at up to 1600×1200 resolution and supports real-time video streaming over Wi-Fi.

The module is optimized for scalability. Breakout ports include 10 GPIOs, along with UART and I2C interfaces. An onboard DC-DC converter provides 5V and 3.3V power outputs, each capable of delivering up to 500mA. Additional features include a built-in USB-to-serial interface, an SD card slot, and battery charging management. By shorting the designated solder jumper pads, you can enable battery voltage detection and camera power control.

Camera-1 is particularly suitable for applications that require camera functionality along with multiple I/Os for controlling peripheral modules. It can be programmed using popular development platforms such as Arduino, PlatformIO, and ESP-IDF.

The module comes pre-loaded with test firmware. To run a test:

1. Power the development board via the USB port or the lithium battery interface, and switch the power button to the ON position.
2. Use your phone to scan for Wi-Fi networks. Find the network name starting with Node- and connect to it (password: nodenode).
3. Open a web browser on your phone and go to 192.168.4.1.
4. View the video stream or modify network settings on the webpage.

Features & Specifications

• Based on the ESP32 microcontroller
  • 240MHz dual-core Tensilica LX6 processor
  • 2.4GHz Wi-Fi (802.11 b/g/n)
  • Dual-mode Bluetooth (Classic + BLE)
• 4MB QSPI Flash
• 8MB QSPI PSRAM
• OV2640 image sensor
  • Max resolution: 2MP (1600 × 1200)
  • Output formats: 8/10-bit RAW, RGB, YUV, and JPEG
  • Max frame rates: UXGA @15fps, SVGA @30fps, CIF @60fps
• USB-C serial connector
• Onboard SD card slot
• 5V 500mA boost regulator output
• 3.3V 500mA step-down regulator output
• Built-in battery charging circuit
• 10× GPIO, UART, and I2C broken out
• Low-power friendly
  • RTC I/O broken out
  • Battery monitoring
  • Camera power control
• Breadboard-friendly design
• Compatible with ESP-IDF and Arduino
• Product dimensions: 52.8mm × 26.4mm × 11mm

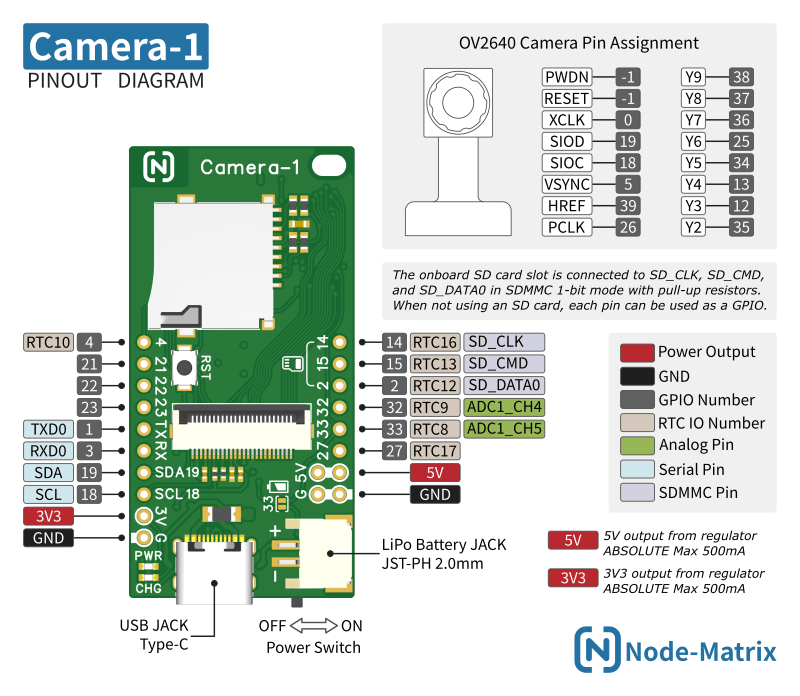

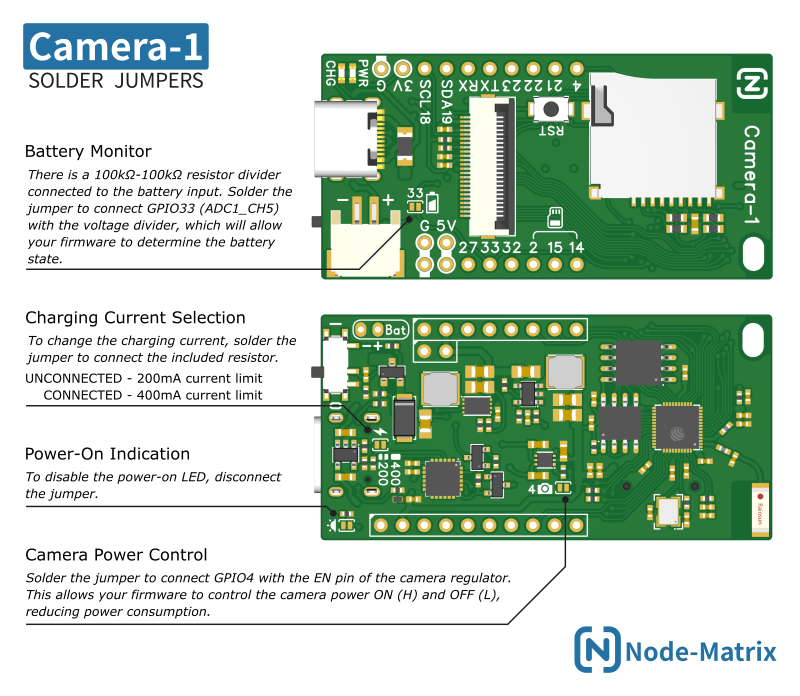

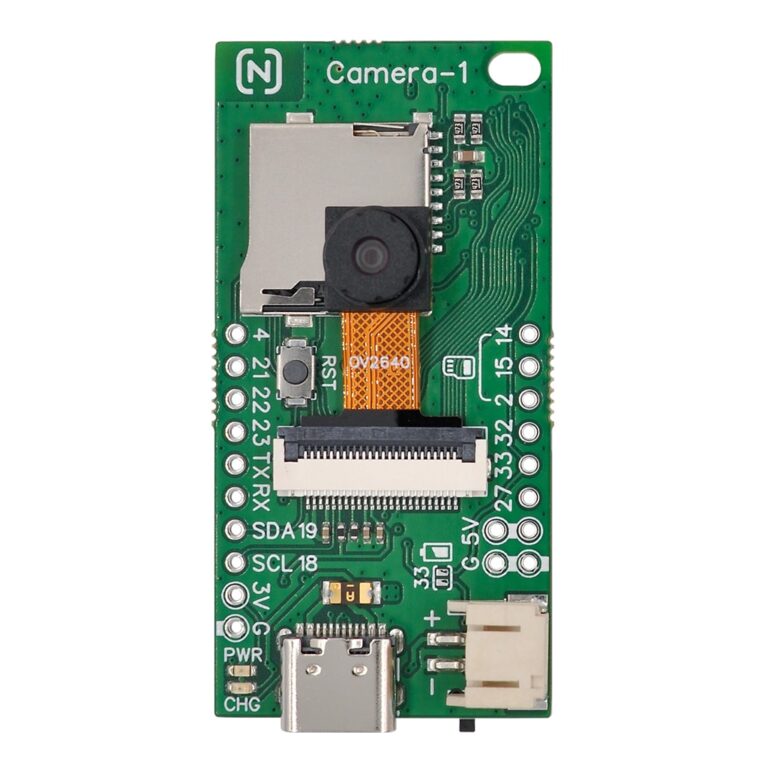

Pinout & Jumpers

Documentation

Schematic
https://github.com/nodematrix/Node-Matrix_Camera-1

Firmware
https://github.com/nodematrix/ESP32CameraDemo
