Node-Camera Firmware

Node-Camera is a ready-to-use firmware for ESP32-based camera modules. It allows users to configure hardware resources and deploy the camera module in real-world projects without any coding. The firmware provides rich configuration and flexible control features, including:

For full documentation, see the Node-Camera User Manual.

Online Installation

Firmware v1.2.0 is available for a one-time fee of $3 (includes free updates). To install Node-Camera, simply connect your device and follow the on-screen instructions to complete the steps below:

Select module and connect

Install firmware

Pay online (via PayPal)

Activate firmware

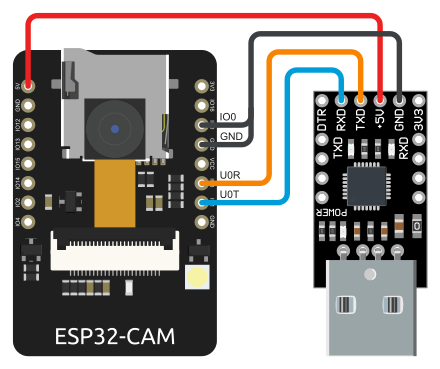

1. The ESP32-CAM module needs to be connected to your computer’s USB port through a USB serial adapter. You can use common adapters such as CP2102, CH340. The adapter connection is shown in the figure.
2. After connecting to your computer’s USB port, you need to boot the module into BOOT mode. Operation method: Connect the IO0 pin of the module to GND; press and release the RST key. The module will boot into BOOT mode.
3. Click CONNECT and select COM port ❯

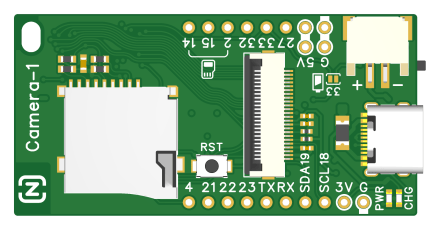

1. The Camera-1 module has an automatic programming function. Simply connect the module to your computer’s USB port using a USB cable.
2. Click CONNECT and select COM port ❯

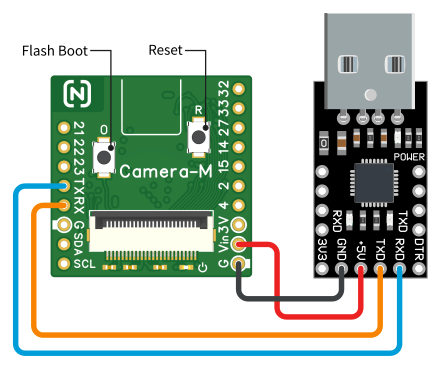

1. The Camera-M module needs to be connected to your computer’s USB port through a USB serial adapter. You can use common adapters such as CP2102, CH340, or the Camera-M Basic Shield board. The adapter connection is shown in the figure.
2. After connecting to your computer’s USB port, you need to boot the module into BOOT mode. Operation method: Press the 0 (Boot) and R (Reset) keys at the same time; release the R key first, and then release the 0 key. The module will boot into BOOT mode.
3. Click CONNECT and select COM port ❯
